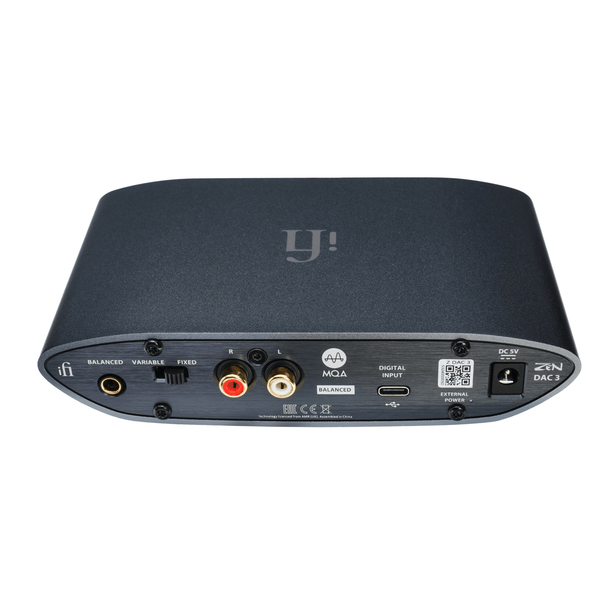

Ultra-res audio: PCM 768kHz, DSD 512 and Full MQA Decoding Improved DC offset and USB-C input overvoltage protection USB-C input for plug-and-play connectivity 4.4mm balanced headphone and line outputs Fixed or variable output gain for optional preamp functionality XBass+ and PowerMatch analogue processing mode
DAC Bit-Perfect DSD & DXD DAC by Burr Brown DIMENSIONS 158 x 115 x 35mm (6.2” x 4.6” x 1.4”) DNR Line Section: ≥ 113dBA @ 0dBFS
Headphone Section: ≥ 109dBA @ 0dBFS (6.2V 4.4mm / 3.3V 6.35mm) FORMATS SUPPORTED PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz) DSD (512/256/128/64) DXD (768/705.6/384/352.8kHz) MQA (Decoder) FREQUENCY RESPONSE 5Hz – 90kHz (±3dB) GAME CONSOLE COMPATIBILITY SONY PS5 and Nintendo Switch “SONY” is registered trademark or trademark of Sony Group Corporation. “PS5” is registered trademark or trademark of Sony Interactive Entertainment Inc. Nintendo Switch™ is trademark of Nintendo. INPUT USB Type-C LIMITED WARRANTY 12 months MAXIMUM OUTPUT POWER Headphone Section: BAL 4.4mm: >70mW @ 600Ω; >300mW @ 32Ω Single-Ended 6.35mm: >18mW @ 600Ω; >210mW @ 32Ω NET WEIGHT 456g (1.0 lbs) OUTPUT IMPEDANCE Line Section: Balanced 4.4mm ≤200Ω; Single-Ended RCA ≤100Ω
Headphone Section: ≤1Ω POWER CONSUMPTION No Signal ~0.5W; Max Signal ~2.5W RMS OUTPUT POWER Headphone Section: BAL 4.4mm: >390mW @ 64Ω Single-Ended 6.35mm: >18mW @ 600Ω; >210mW @ 32Ω THD+N Line Section: BAL 4.4mm: <0.0015% @ 0dBFS Single-Ended 6.35mm: <0.003% @ 0dBFS
Headphone Section: BAL 4.4mm: <0.005% (2V @ 600 Ω) Single-Ended 6.35mm: <0.013% (1.27V @ 32Ω)@ 32Ω POWER SUPPLY REQUIREMENT USB-C or DC 5V/0.5A (centre +ve)
