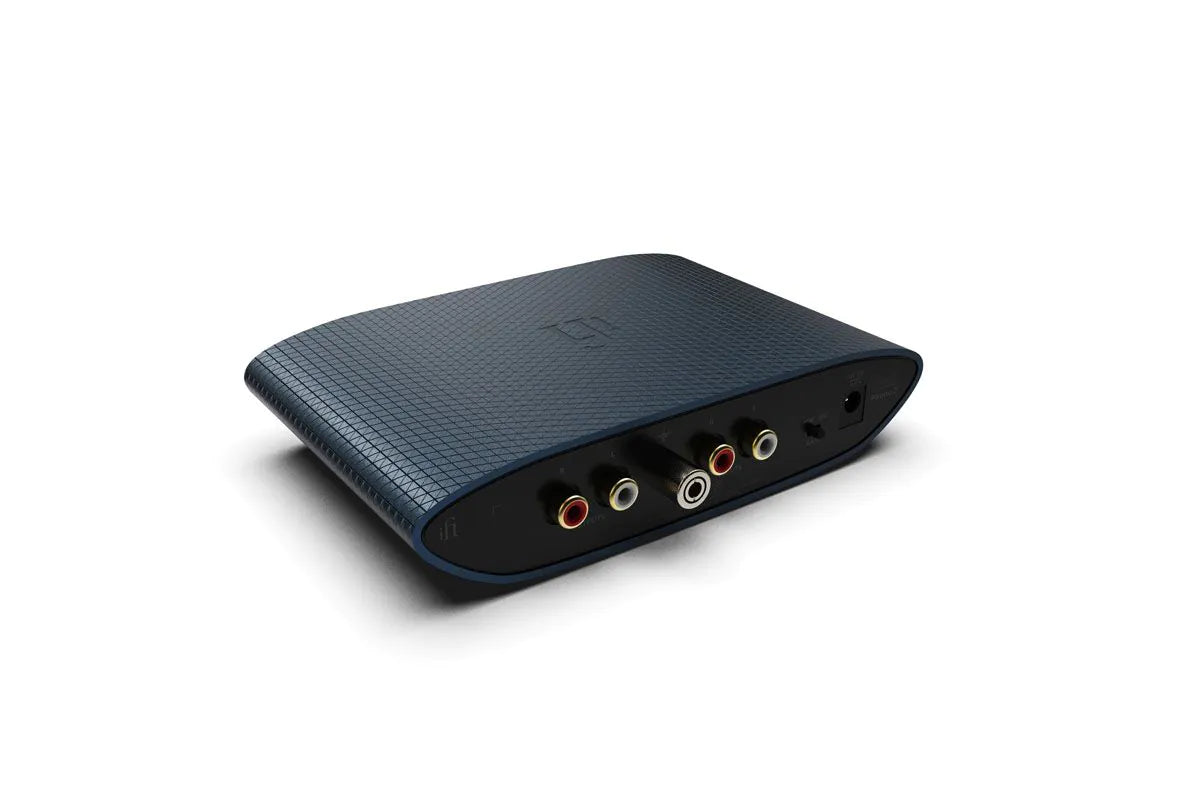

iFi ZEN Air Phono 2

• Uncovers the true character and warmth of your vinyl
• Expertly optimised for both MM and MC cartridges
• -141dBV ultra-low noise floor brings out hidden detail in records
• Precise RIAA equalisation delivers lifelike playback
• Symmetrical channel design for high-end audiophile performance
• Subsonic filter cleans up rumble and keeps warped records sounding smooth

Specifications

• Frequency Response 20-20kHz (±0.15dB)
• Channel Separation >75dB (1kHz, all modes)
• Max. Output Voltage 6.5V RMS
• Gain MM 40dB; MC 64dB
• Input Impedance MM 47kΩ; MC 1kΩ
• Output Impedance 100Ω
• SNR
• MM (40dB ±1dB) 86dB (A-weighted) re 1V
• MC (64dB ±1dB) 40dB (A-weighted) re 1V
• EIN (Equivalent Input Noise)
• MM 6.5nV | /Hz (unweighted); -126dBV (A-weighted)
• MC 0.6nV | /Hz (unweighted); -146dBV (A-weighted)
• Total Harmonic Distortion
• MM <-90dB / 0.005% re 1V
• MC <-80dB / 0.036% re 1V
• Power Requirements DC 5V/1A (centre +ve)
• Power Consumption <1.8W
• Dimensions 158 x 117 x 35mm (6.2 x 4.6 x 1.4")
• Net Weight 323g (0.72 lbs)
