● Intelligent subsonic filter that removes LP warp without removing low end
● Precise RIAA EQ with +/- 0.15dB tolerance from 20Hz-20kHz
● -151dBV measured Equivalent Input Noise. 20dBV quieter than some Stereophile Class A+

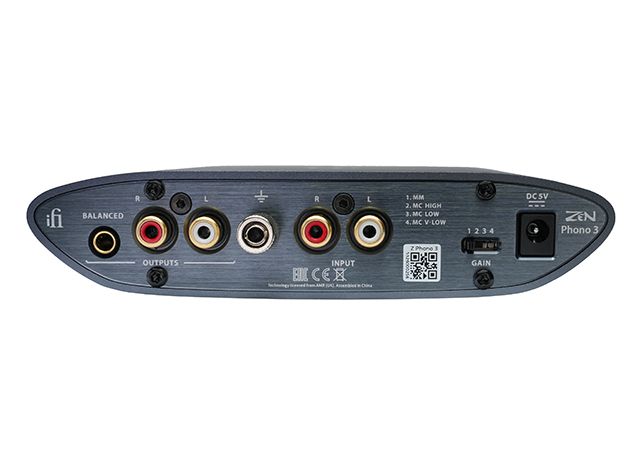

● 4.4mm balanced and RCA line outputs
● High precision, (1.2MHz) high-current power supply controller

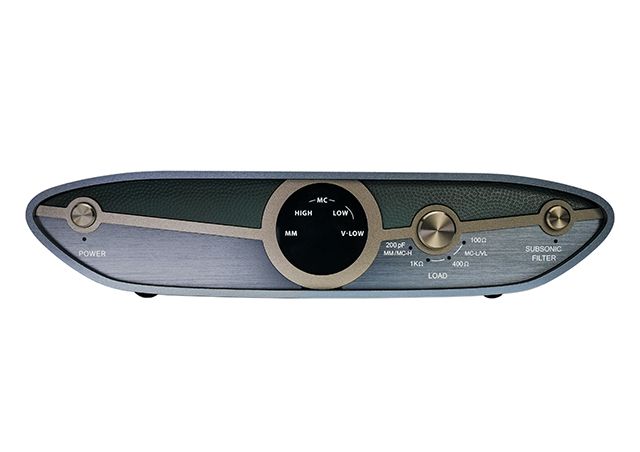

● 36-72dB gain range and load impedance adjustment button to support a range of cartridges
● Two loading options for MM and MC-High (100 & 200pF capacitance) and three options for MC-Low and MC-V Low (100, 400 & 1kOhm)
Specifications
CHANNEL SEPARATION >75dB (1kHz all modes)
DIMENSIONS (Length x Width x Height)
158 x 115 x 35mm (6.2” x 4.6” x 1.4”)
FREQUENCY RESPONSE BAL: 20Hz-80kHz (-3dB)
SE: 20Hz-20kHz (-0.15dB)
GAIN SETTINGS MM: 36dB
MC High: 48dB
MC Low: 60dB
MC V-Low: 72dB
INPUT IMPEDANCE MM: 47KΩ (100/200pF)
MC High: 47kΩ (100/200pF)
MC Low: 1k/400/100Ω
MC V-Low: 1k/400/100Ω
LIMITED WARRANTY 12 Months*
MAXIMUM OUTPUT VOLTAGE BAL:
100kΩ: ≥19.98V (THD+N <1%), 600Ω: ≥12.75V (THD+N <1%)
SE: 100Ω
NET WEIGHT 456g
OUTPUT IMPEDANCE BAL: 200Ω
SE: 100Ω
POWER CONSUMPTION No Signal ~1.5W; Max Signal ~1.8W
SNR MM:
91dB(A)/82dB (unweighted 80kHz BW)
MC High:
81dB(A)/72dB (unweighted 80kHz BW)
MC Low:
89.6dB(A)/80dB (unweighted 80kHz BW)
MC V-Low:
78.6dB(A)/69dB (unweighted 80kHz BW)
TOTAL HARMONIC DISTORTION MM: <-91dB/0.0027%
MC High: <-80dB/0.0095%
MC Low: <-70dB/0.031%
MC V-Low: 1k/400/100Ω
POWER SUPPLY REQUIREMENT DC 5V/0.5A (centre positive)
